| Standard Colour： | Light Grey |
| Customized Colours (Subject to Minimum Order Quantity)： | Olive Green, Brown, Clay, Tan & Other RAL colours |
| UV Protection： | Smallboss Vinyl Sheet Piles are manufactured from highly weatherable, UV-stabilised and rigid PVC |
| L/mm | Ll/mm | L2/mm | L3/mm | H/mm | ∠A/° | T/mm |
| 606 | 108 | 390 | 108 | 222-236 | 98 | 5-12 |
| Material | pvc | |
| Section Width | 606 mm | |
| Section depth | 230 mm | |
| Llength | customzation | |
| Thickness | mm | |
| Package | N/A | |
| Color | Grey | |
| Weight | 13.5士0.5 kg/m | |
| Density | 1400-1480kg/m‘ | |
| Moment of inertia | 12766 cm4/m | |
| Section modulus | 1086 cm3/m | |
| Ultimate moment | 47.8 kNm/m | |
| Tensile Strength | ≥44 Mpa | ASTM D638 |
| FlexuralStrength | ≥66 Mpa | ASTMD790 |
| Modulus of Elasticity | ≥2600 Mpa | ASTM D790 |
| Lzod impact strength | ≥50J/m | ASTM D256 |
| Simply supported beam notched impact strength |
9KJ/m’ | |
| VicatSoftening Temp | 77℃ | ASTM D1525 |
| Project | Unit | Numerical value | Test method |
| Density | (g/cm²) | 1.22-1.5 | GB/T 1033.1 |
| Tensile Strength | (Mpa) | 43-45 | GB/T 1040.2 |
| Bending strength | (Mpa) | 66-75 | GB/T 9341 |
| Impact strength | (KJ/cm²) | 2.2-6 | GB/T 1043.1 |
| Hardness | (Shaw D) | ≥79 | GB/T 2411 |

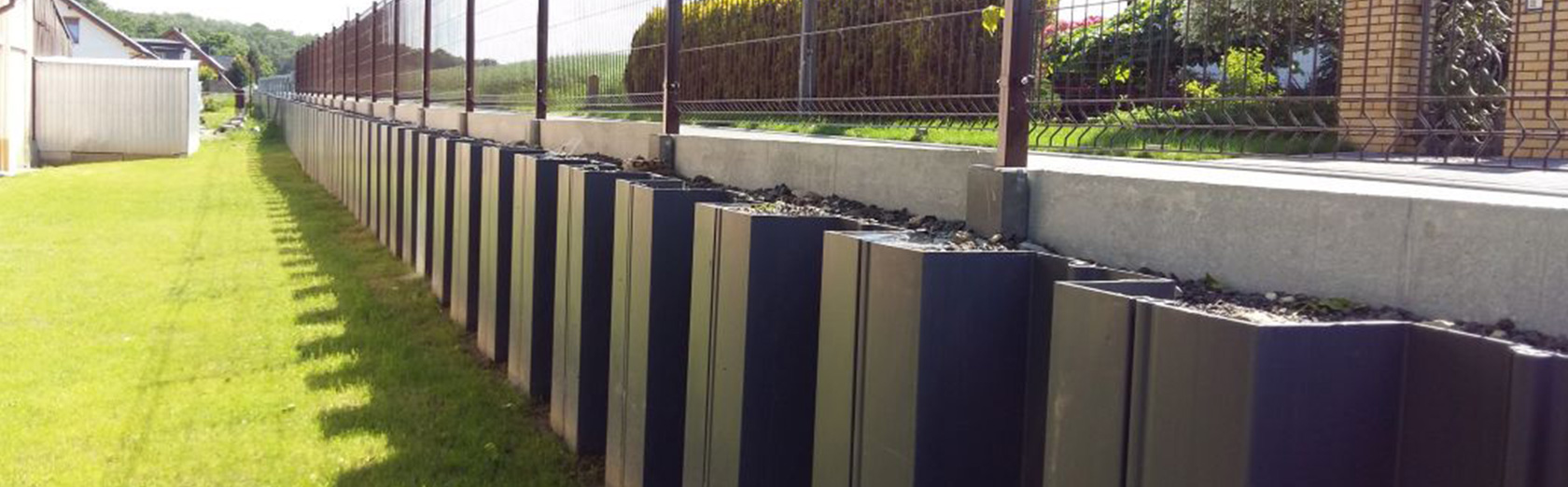

They are also used to contain rocks, boulders, or acropodes in case of steep-sloped or multi-layered revetments. Revetment works aided with vinyl sheet piles bring added security to human life and properties in marine facilities and nearby coastlines.
