| Standard Colour： | Light Grey |
| Customized Colours (Subject to Minimum Order Quantity)： | Olive Green, Brown, Clay, Tan & Other RAL colours |
| UV Protection： | Smallboss Vinyl Sheet Piles are manufactured from highly weatherable, UV-stabilised and rigid PVC |
| L/mm | Ll/mm | L2/mm | L3/mm | H/mm | ∠A/° | T/mm |
| 606 | 108 | 390 | 108 | 222-236 | 98 | 5-12 |
| Material | pvc |

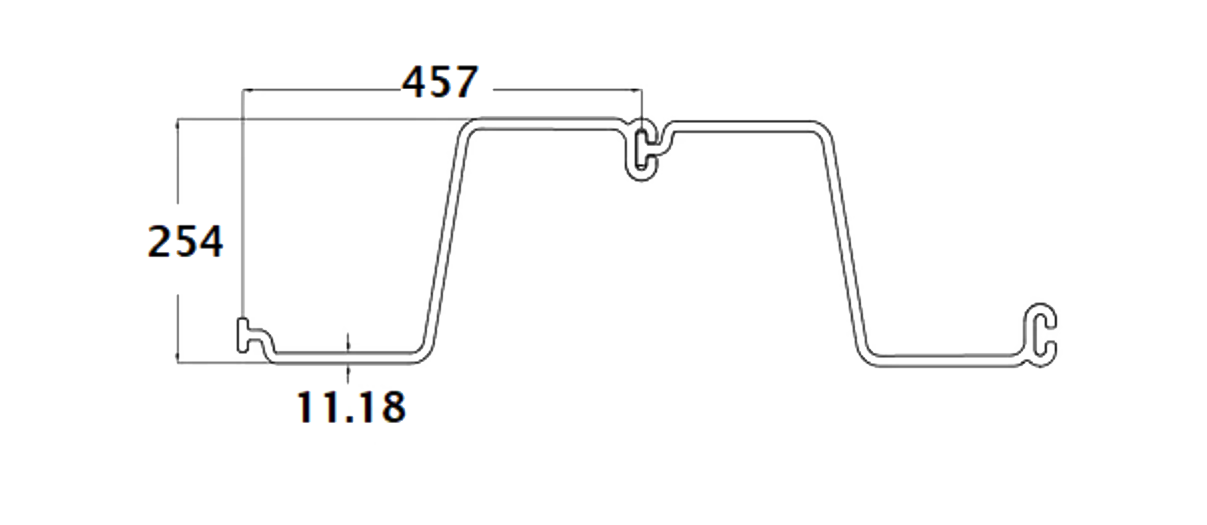

| Section Width | 457 mm |
| Section depth | 254 mm |
| Length | Customization |
| Thickness | 11.18mm |
| Package | Customization |
| Color | Grey/customization |
| Weight | 11.5士1 kg/m |
| Moment of inertia | 22709 cm4/m |
| Section modulus | 1717 cm3/m |
| Ultimate moment | 7948 kg-m/m |
| Tensile Strength | 44.8 Mpa |
| FlexuralStrength | 78 Mpa |
| Modulus of Elasticity | 2620 Mpa |
| Notched zod impact | 2.46 Kg/cm |
| Heat Deflection Temperature | 70℃ |

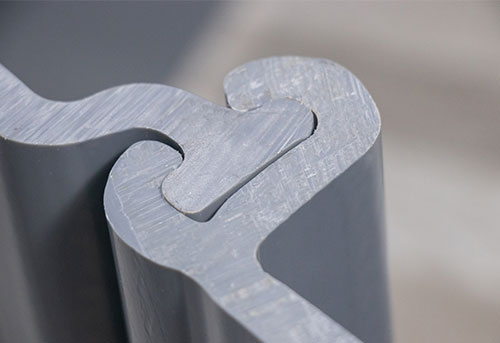

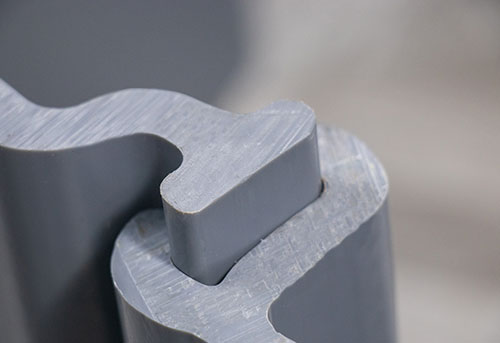

Small Boss Vinyl Sheet Piles are frequently the optimal solution for fluid containment projects. Vinyl PVC is a inert material that can exhibit superior chemical resistance, water corrosion resistance. The interlocks of the sheet pile can be coextruded with a sealing membrane that further improves cutoff performance.
