| Standard Colour： | Light Grey |
| Customized Colours (Subject to Minimum Order Quantity)： | Olive Green, Brown, Clay, Tan & Other RAL colours |
| UV Protection： | Smallboss Vinyl Sheet Piles are manufactured from highly weatherable, UV-stabilised and rigid PVC |

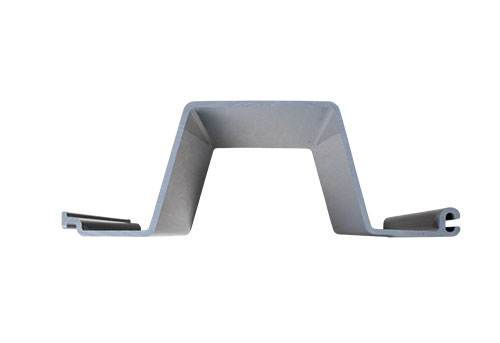

| L/mm | Ll/mm | L2/mm | L3/mm | H/mm | ∠A/° | T/mm |
| 606 | 108 | 390 | 108 | 222-236 | 98 | 5-12 |
| Material | pvc |

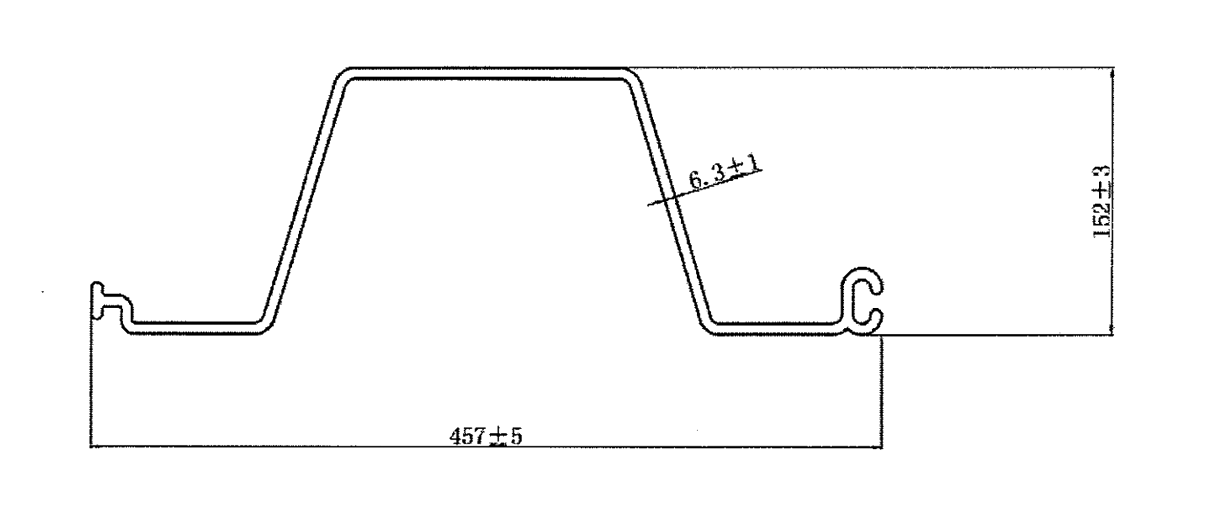

| Section Width | 457 mm |
| Section depth | 152 mm |
| Length | Customization |
| Thickness | 6.35 mm |
| Package | Customization |
| Color | Grey/customization |
| Weight | 7.1 kg/m |
| Moment of inertia | 3742 cm4/m |
| Section modulus | 489 cm3/m |
| Ultimate moment | 2263 kg-m/m |
| Tensile Strength ASTM D638 | 44.8 Mpa |
| Flexural Strength ASTM D790 | 70.3 Mpa |
| Modulus of Elasticity ASTM D790 | 2620 Mpa |
| Notched Izod impact ASTM D256 | 2.46 Kg/cm |
| Heat Deflection Temperature ASTM D648 | 70℃ |

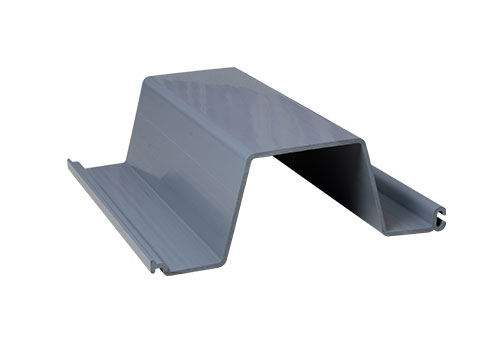

Vinyl PVC Sheet Piles provide an excellent option for a long-lasting structural solution due to their superior corrosion resistance, aesthetic finish, and lightweight profile for easy handling and installation.
